Flat Drip Irrigation Tape Production Line

High efficiency production

Our production line is equipped with high-precision equipment and advanced technology, which can achieve efficient, stable, and precise production. Hundreds of meters of drip irrigation tape can be produced per hour, greatly improving production efficiency.

High-quality materials

We use high-quality raw materials to produce drip irrigation tape, ensuring product quality and stability. We constantly conduct research and innovation, introduce the most advanced production technology to ensure that each drip irrigation tape meets high-quality standards.

Multi-functionality

Our production line can produce different specifications, sizes, and wall thicknesses of drip irrigation tape according to customer needs, and can also produce different types of patch drip irrigation tapes suitable for different crops and soil environments.

Winding and packaging

Our production line offers various degrees of automation in the winding and packaging process tailored to customer needs. We have a range of automation equipment , improving production efficiency and work benefits.

We always focus on customer needs and are committed to providing customers with high-quality drip irrigation tape production line equipment and services. Please feel free to contact us for more information!

Contact Now

Product Details

1、Technical Data：

number	project	High speed line A	Standard line B
1	Dropper belt diameter	Φ 16 - Φ 20 mm	Φ 16 - Φ 20 mm
2	Wall thickness	0.15 0.60 mm	0.15 0.60 mm
3	Single screw extruder	SJ--75/32	SJ--65/32
4	Designed rate of production	200m/min(300mm spacing)	120m/min(300mm spacing)
5	Center line height	1000mm	1000mm
6	Dropper screening speed	600 PCS per minute	400 PCS per minute
7	Drop spacing	100mm—1500mm	200mm—1500mm
8	Drilling rate	600 PCS /min	400 PCS /min
9	Punching mode	High speed motor	High speed motor
10	Dropper tape length per roll	500m—1000m	500m—1000m
11	Total installed capacity	102Kw	84Kw
12	Maximum extrusion	180Kg	120Kg
13	Electrical control system	Motion controller	PLC control
14	Overall dimensions (length × width × height)	32 m * 5 m * 2.5 m	26 m * 5 m * 2.5 m
15	The weight of the whole line	6000kg	4500kg

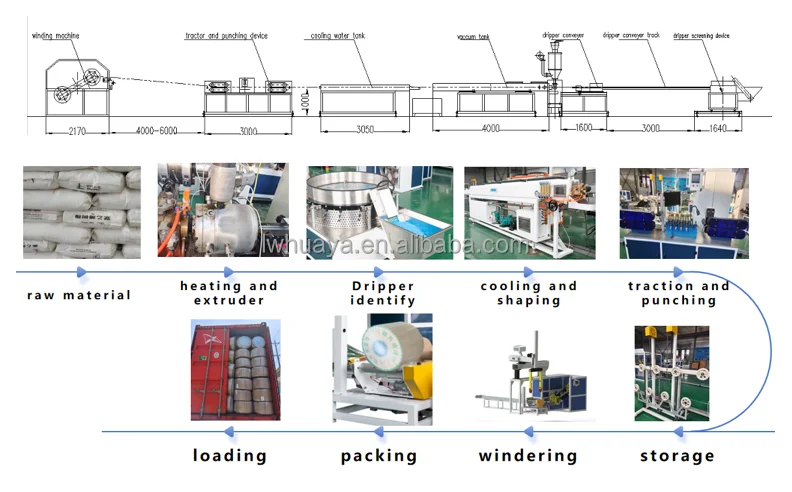

2、Production line equipment composition

S. N.	Items	Specifications

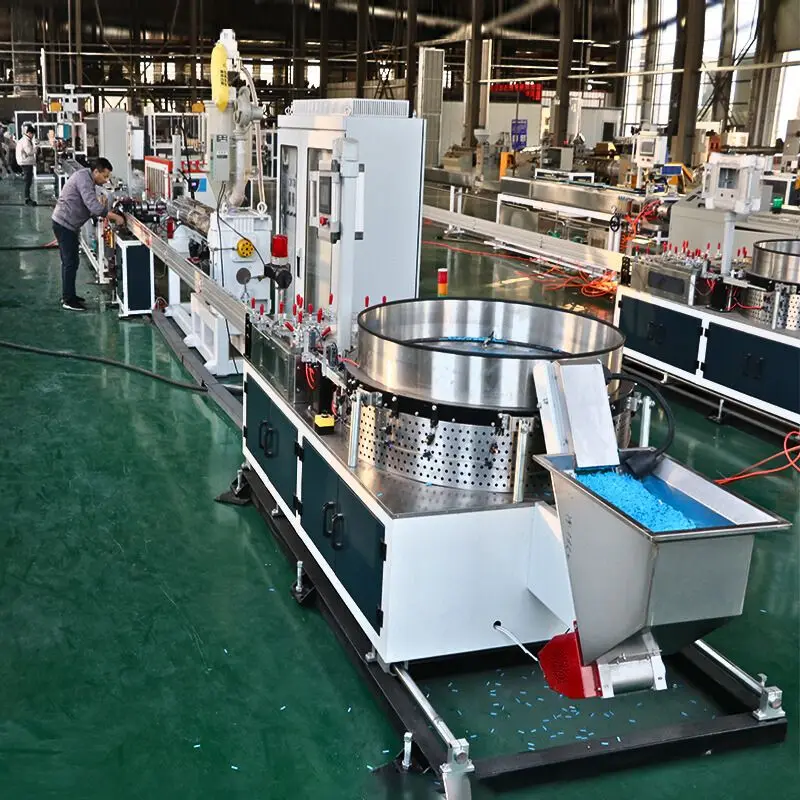

1	Dripper identify device	0.75 kw
2	Dripper conveyer	400 PCS /min
3	Single Screw Extruder	SJ-65/32
4	Die	Right Angle
5	Vacuum calibrating tank	4000mm
6	Water cooling tank	4000mm
7	Trator	120m/min
8	Punching device	400 PCS /min
9	Double automatic einder	120m/min
10	Electical control system	PLC

Products Description

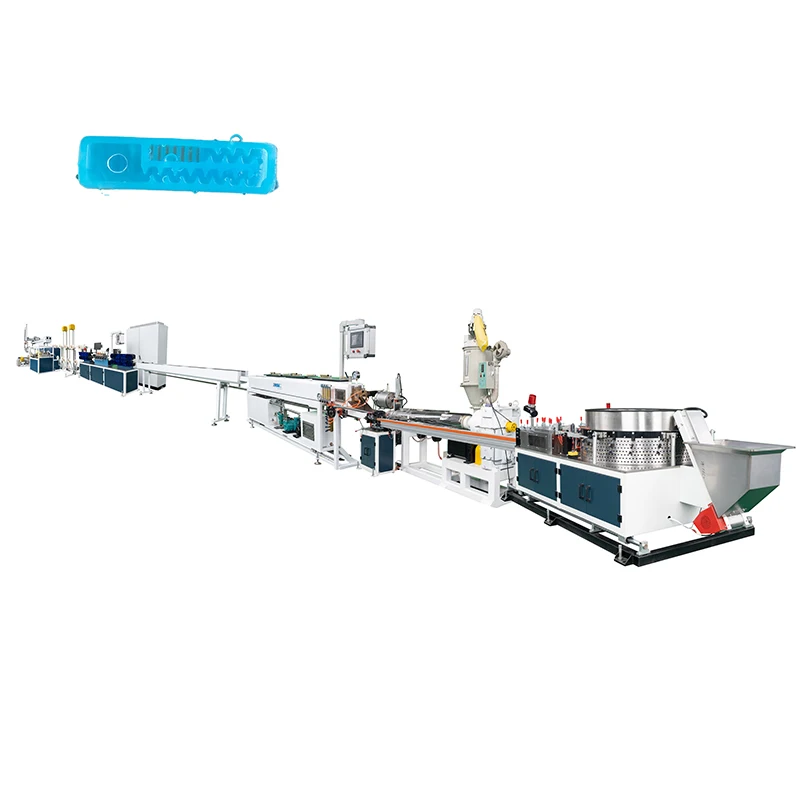

New High-Speed Flat Drip Tape Production Line
To meet market needs, we’ve developed this new tech equipment – a high-speed fully automatic flat drip tape production line,making tapes from Φ12-16-20mm.
Advantages:

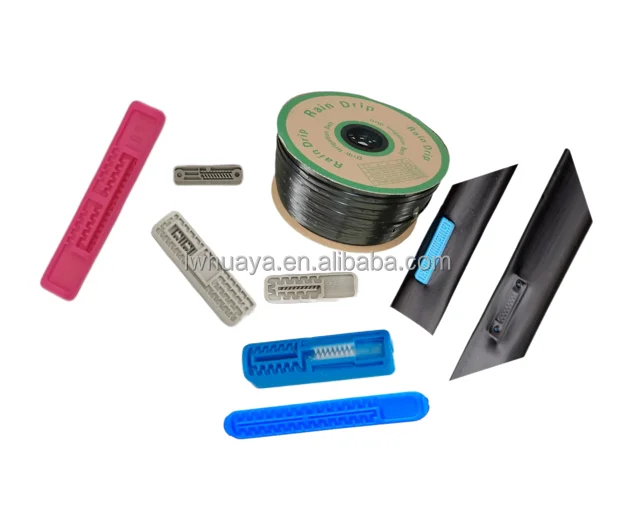

Fits various dripper shapes; custom options available.
High speed: up to 360m/min.
Precise servo-controlled dripper injection.
Online adjustment of dripper speed/spacing via PLC screen.
Servo-driven automatic drilling (precision-controlled), synced with production speed via PLC.

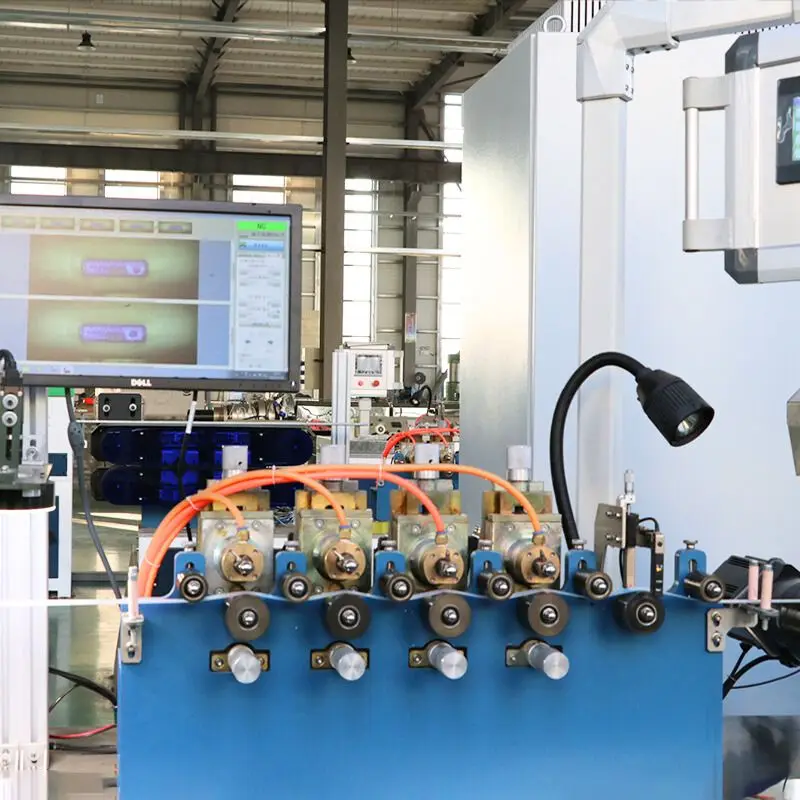

Online video system monitors drilling in real time.
Full automation: cutting, winding, roll changing, and robotic transfer to baler for packaging.

Machine components

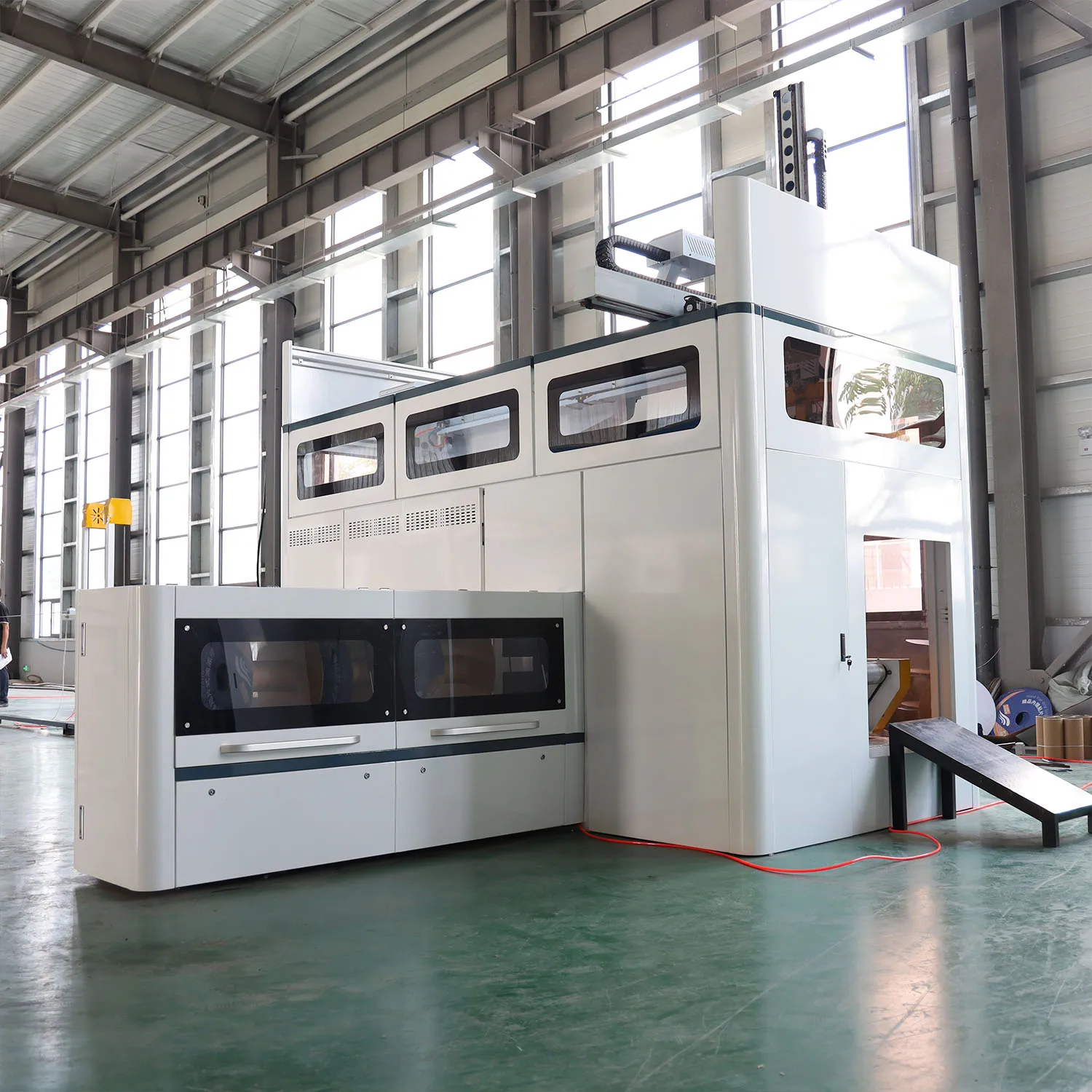

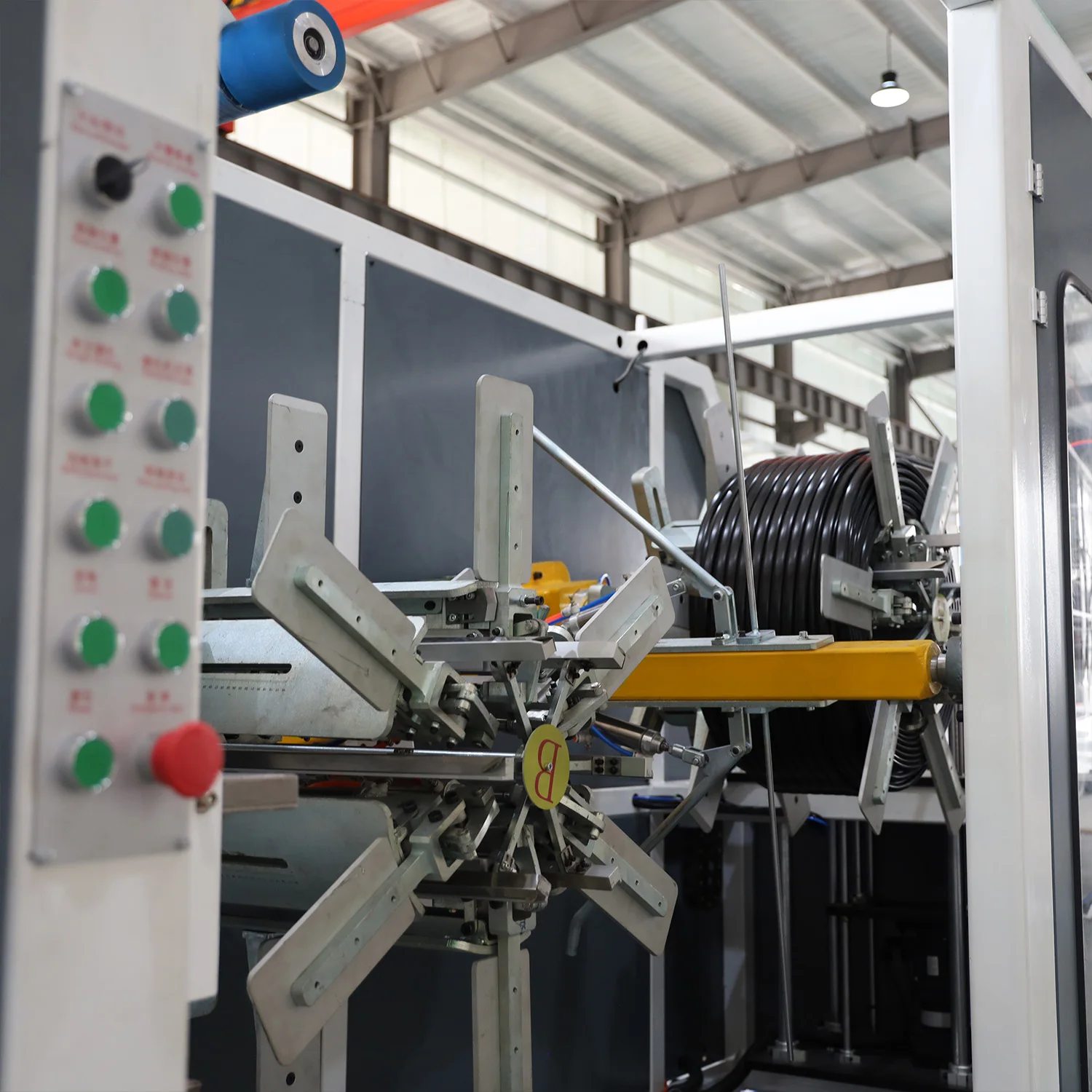

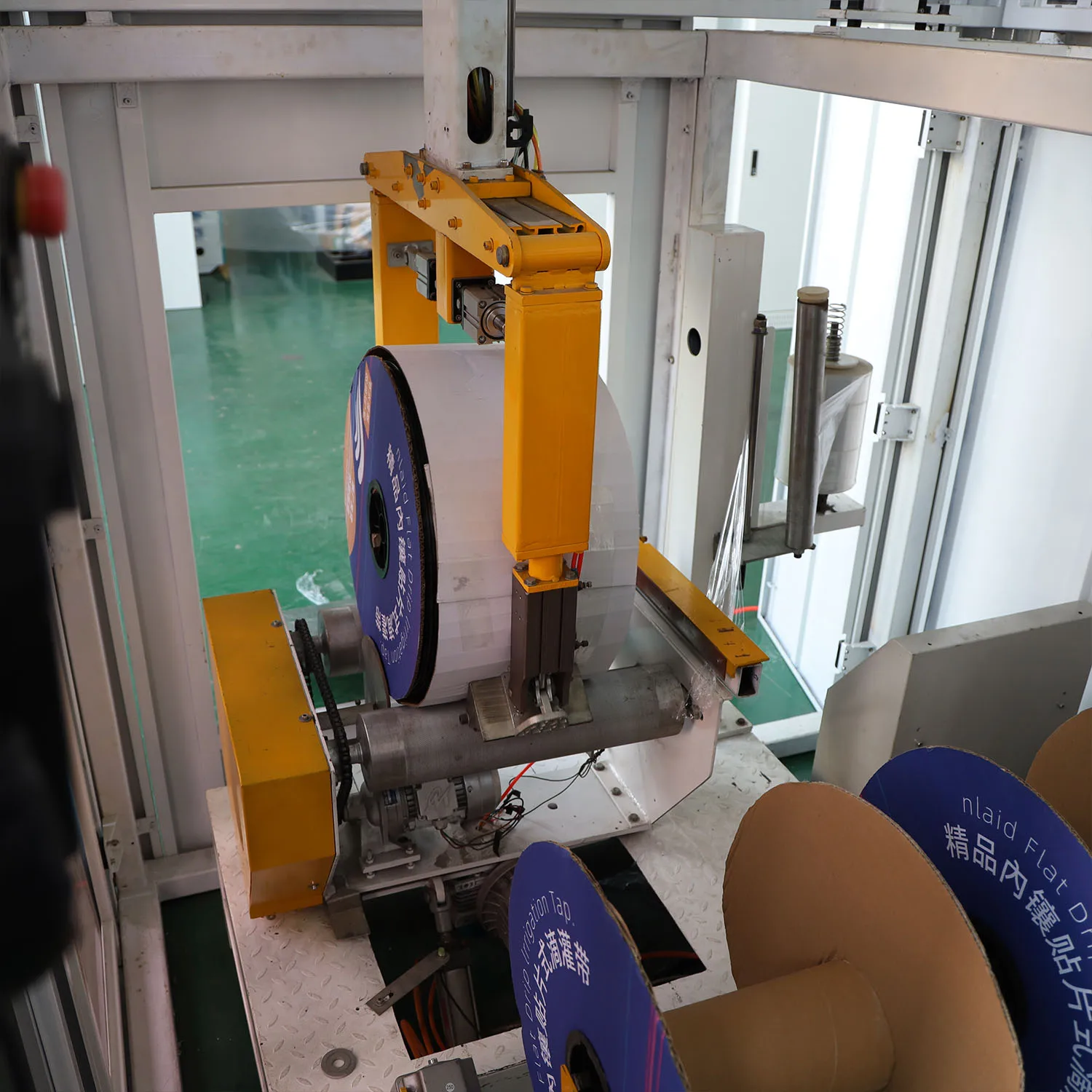

Automatic Winding And Packaging

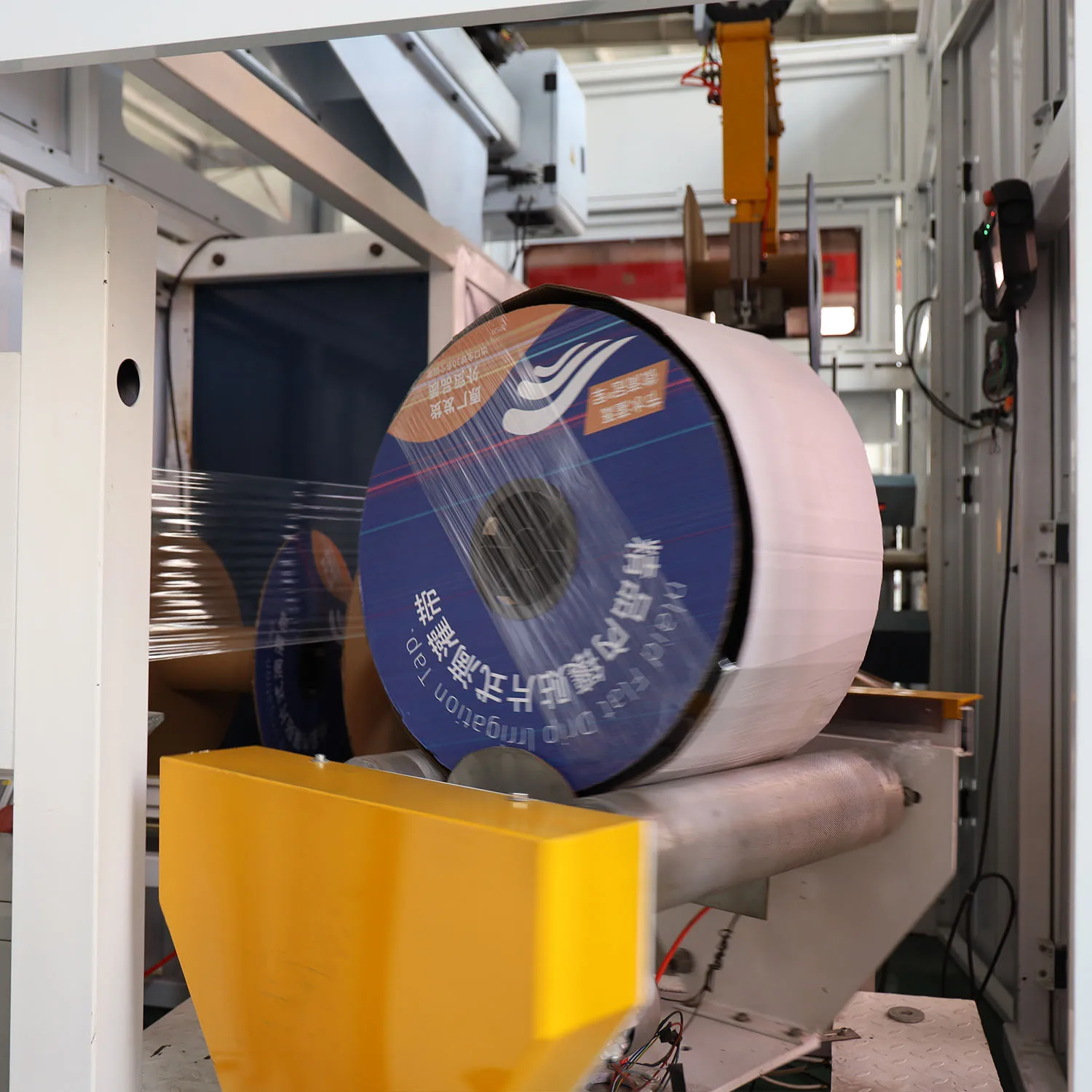

Automatic change the roll core and automatic roll down by the manipulator after winding finished and automatic packing.
– Core Benefits
 1. Boost efficiency: Fully auto (no manual intervention), 2x faster packaging vs manual.
 2. Cut costs:
Reduce labor costs by 60%+, save 80% on training/management expenses.
 3. Ensure quality:
 Consistent, neat packaging; product damage rate ≤0.5%.
 4. Multi-purpose:
Supports stretch film & other packaging types, fits diverse industries.

Specification

Pipe diameter	Specification
	12mm	16mm	20mm
Wall thickness	0.15-0.4mm
Dripper spacing	100mm-300mm adjustable
Flow rate	1.38L-4L can customized
Thickness tolerance	±0.05mm	±0.05mm	±0.05mm

Customer

Clients using our Russian flat drip irrigation tape production line expressed high satisfaction and indicated they would place additional orders for other production lines.

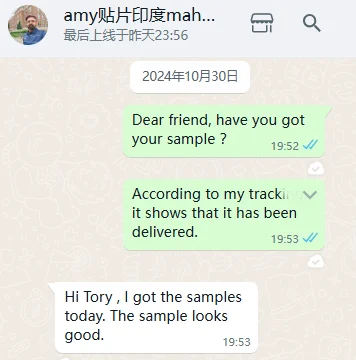

The client in India has expressed satisfaction regarding the test samples corresponding to the production line that we are pending shipment of.

Company Profile

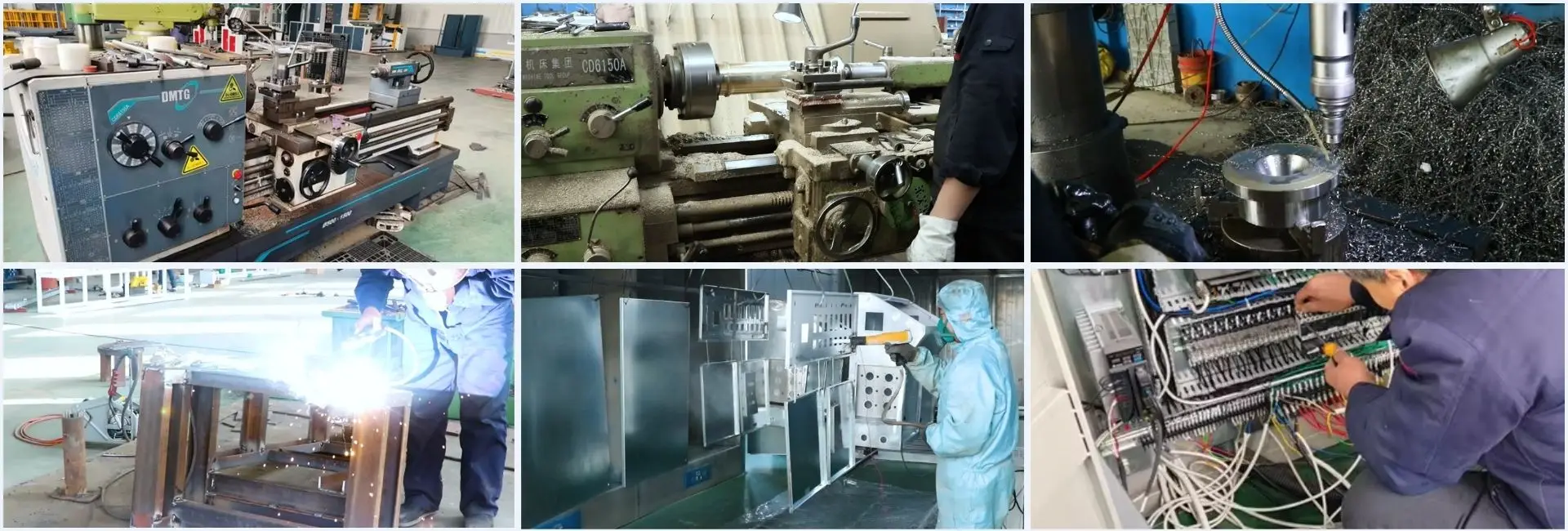

1. Manufacturing Capabilities & Automation Level

Factory size and capacity: HWYAA with 15321.7 m² facilities and 100+ staff
Automation level: High automation ensures consistent quality and production speedProduction range: Capability to handle 12-250mm pipe diameters for PE/HDPE materialsAnnual production capacity: HWYAA proven high-volume output of 50+ sets  per year of drip irrigation making machine
2. HWYAA Industry Certifications & Quality StandardsISO 9001-2015: Quality management system certification
CE Marking: European conformity for safety and environmental standards

3. Technical Expertise & Customization Capabilities

ODM/OEM Services:
In-house R&D team for custom product development.
QA/QC Systems:
Certifications available. Pre-shipment machine testing.
Testing Capabilities:
 Pre-shipment product flow testing. Sample testing service available upon request.
Technical Support:
On-site training. Installation and operation manuals. Repair and maintenance services. Free translation of technical updates.Cooperate with internationally renowned brands，provide global warranty；
