HWYAA Mine Heap Leaching Pressure-Compensating Cylindrical Round Dripper Drip Irrigation Pipe Production Line

Tailored for harsh mine environments, the Mine Pressure-Compensating Cylindrical Dripper Drip Irrigation Pipe Production Line stably produces pressure-compensating cylindrical dripper drip irrigation pipes, suitable for mine dust suppression, heap leaching, etc. It can also switch to agricultural and landscape scenarios for multi-purpose use, cutting costs and expanding capacity.

Contact Now

Product Details

I. Core Product Advantages

1. Durable Cylindrical Drippers: The inlaid round emitter drip pipe is equipped with high-wear, impact-resistant drippers, no need to adjust orientation, suitable for long-term mine operations.

2. Dual Inlet & Outlet Backup: 2-inlet 2-outlet design ensures uninterrupted operation; anti-siphon and anti-leakage for stability.

3. Flexible Configuration: Customizable diameters (16mm, 20mm+), dripper spacing (15-150cm) and flow rate (0.8-4.0LPH), no core component replacement needed.

4. Multi-Scenario Adaptation: Suitable for mining, agriculture and landscape, boosting market expansion and profitability.

II. Mine-Specific Features Thick-Wall Structure: 0.9-1.2mm thick, wear-resistant, reducing maintenance costs.

Anti-Clogging: Labyrinth flow channels + self-cleaning, solving clogging from complex mine water. Precise PC System: Stable output (0.5-1.0kg/cm), suitable for undulating/steep mine terrain.

Underground & Maintenance-Free: No daily management, no impact on mine machinery operation.

III. Mine Application Scenarios

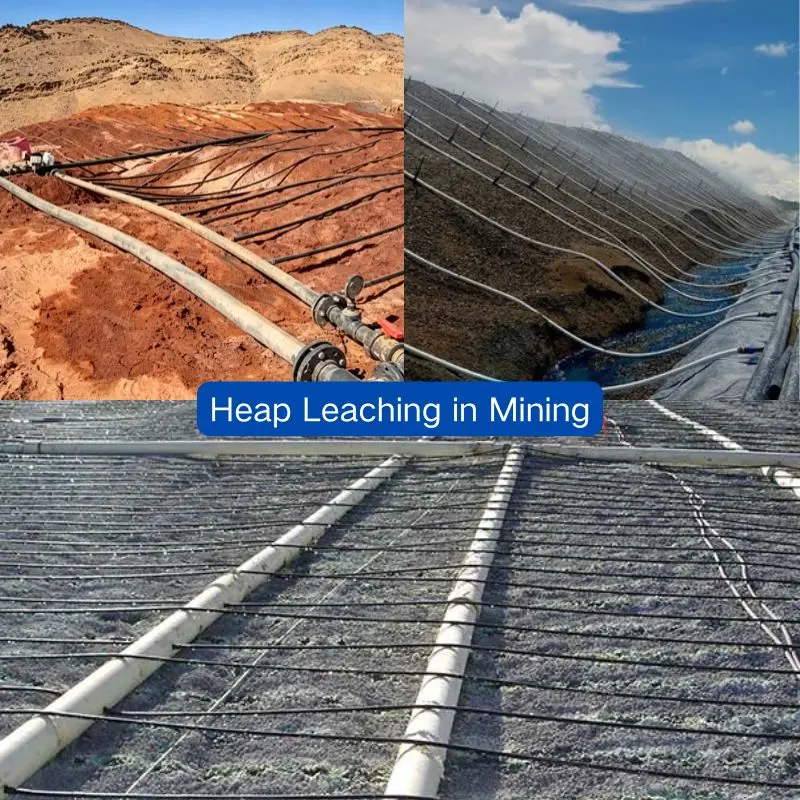

Heap Leaching: The plastic round tube delivers solvent uniformly, improving leaching rate, enabling year-round production.

Dust Suppression: The inlaid round emitter drip pipe realizes precise continuous spraying, replacing sprinklers, reducing pollution and costs.

Site Rehabilitation: The alround drip pipe promotes vegetation growth on tailings dams, meeting green mine standards.

Vegetation Maintenance: Stable watering for mine surrounding vegetation, building ecological barriers.

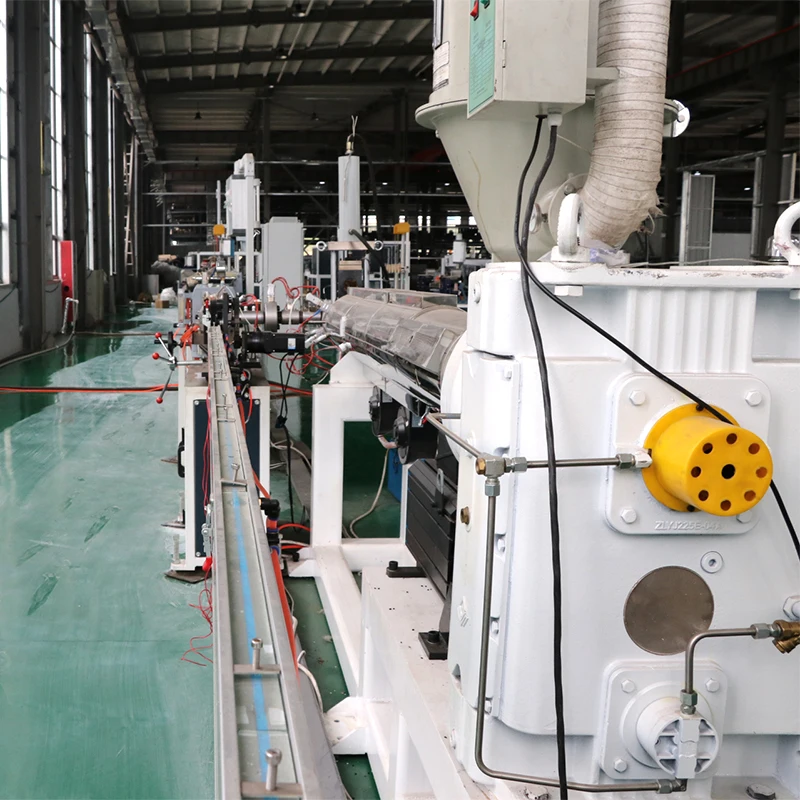

Extruder Diameter 75mm L/D Ratio 32:1 Rotating speed: 90r/min Material: 38CrMoAIA Surface Hardness: 950Hv

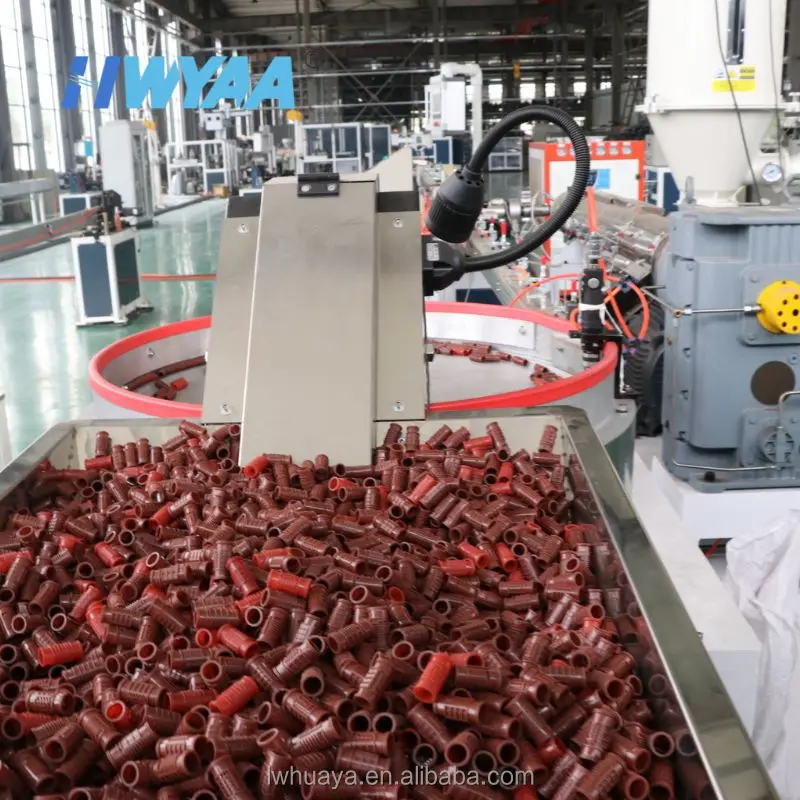

Screening disc 1.Dripper identify:Photoelectric probe 2.Inject Motor:400w Servo motor

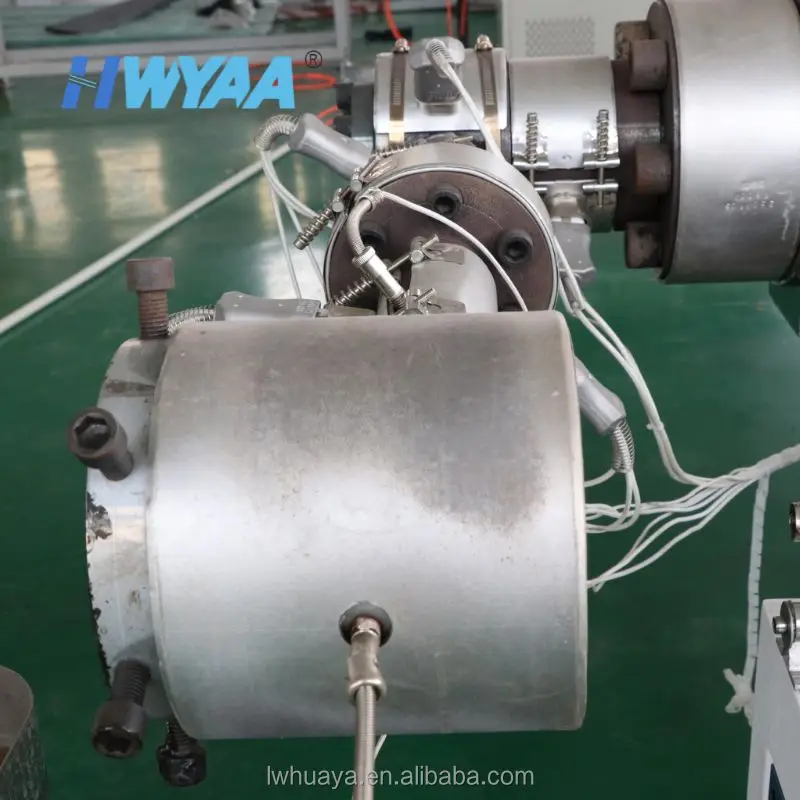

Die head Material for Die Head:40Cr

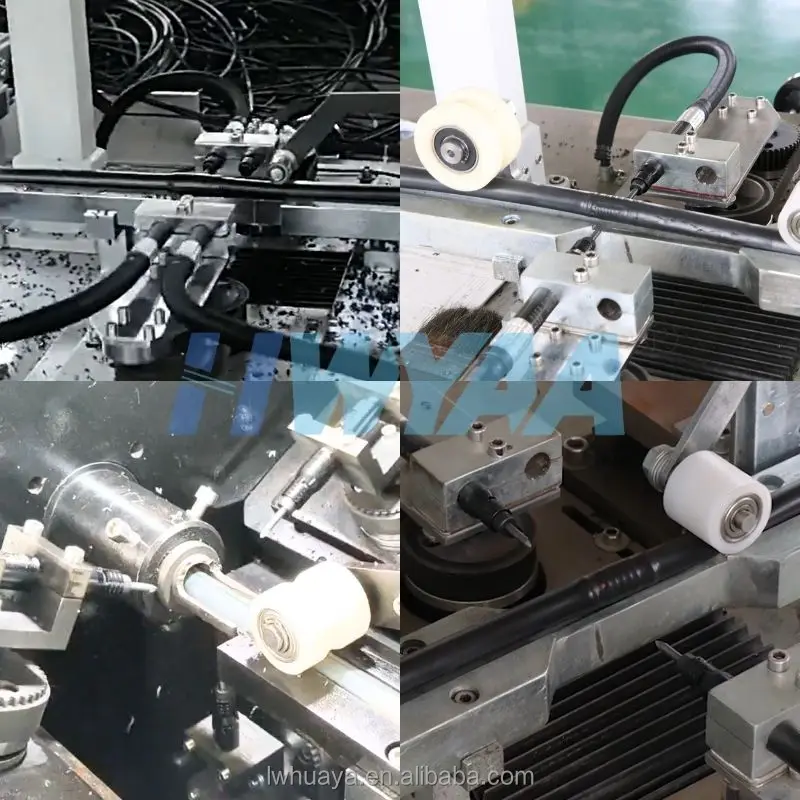

Punching device Punch way:Mechanical punching Punch motor:two servo motor Control method:PLC

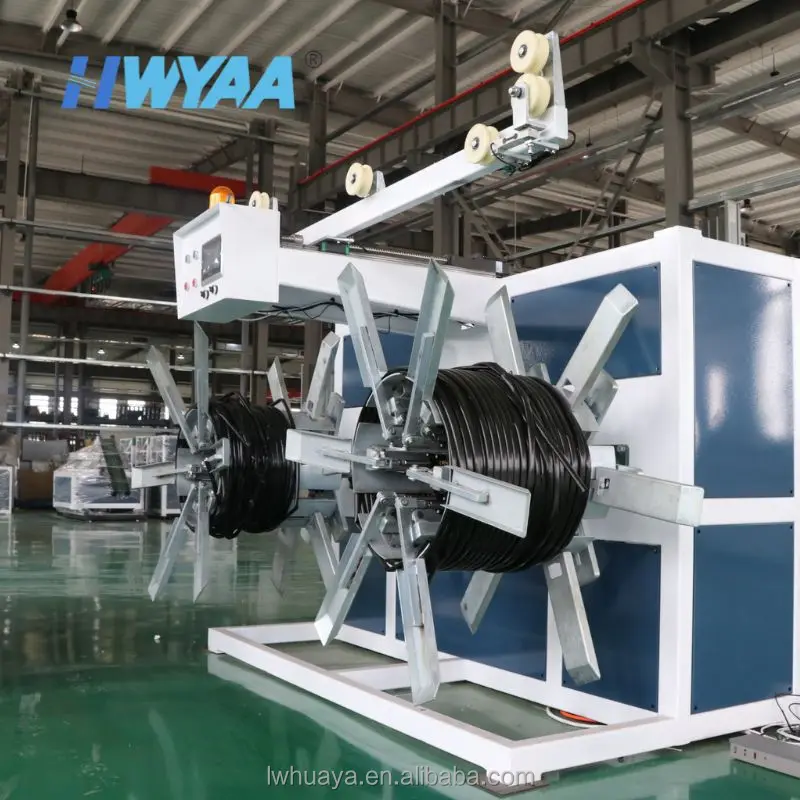

Winding machine Winder Style Double station center recoiling Winding speed 80m Reel Drive Motor 16NM Moment Motor Control method PLC

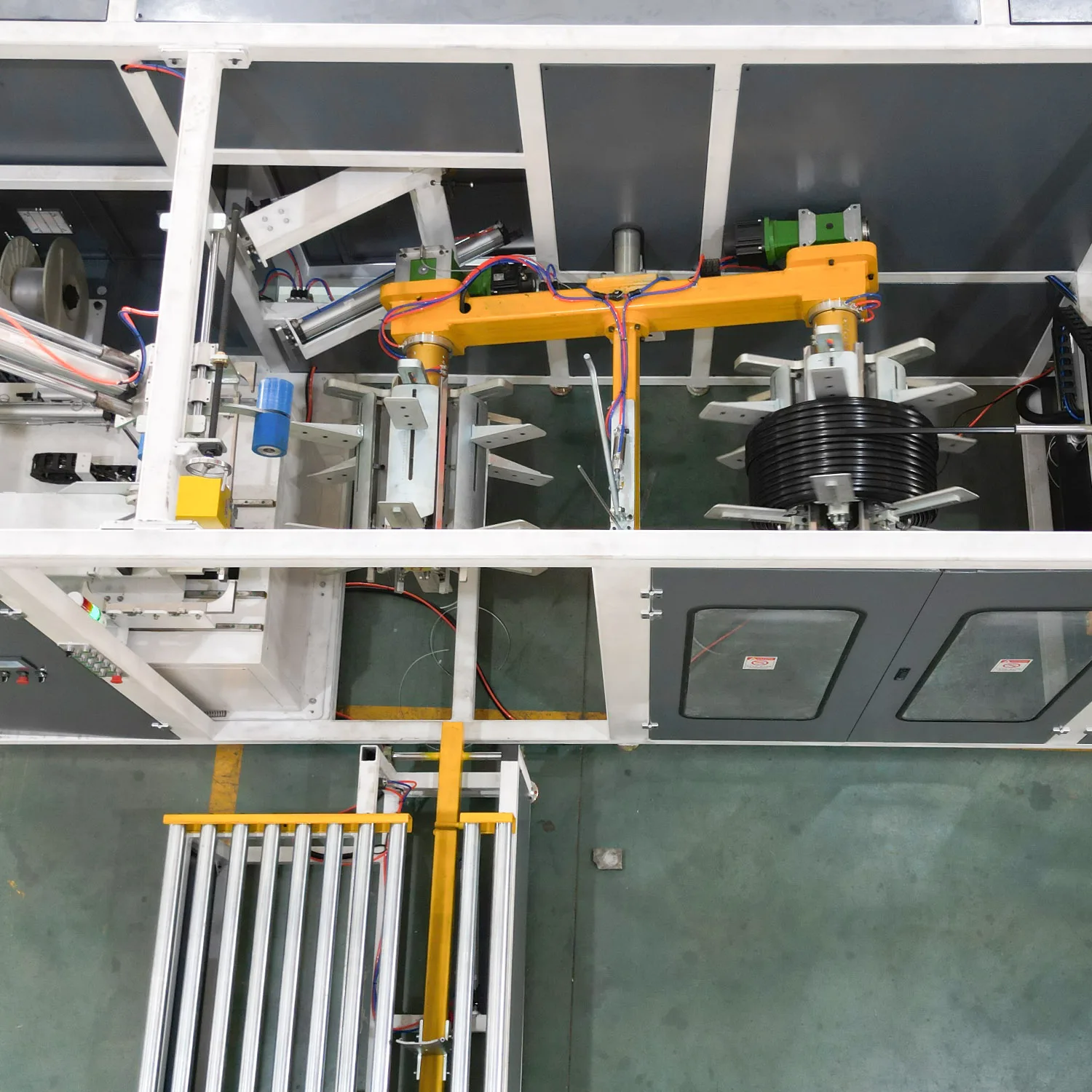

Fully Automatic Winding and packaging System Drive Motor AC servo motor.Roll Change Method:Automatic roll change Cable motor servo moto Tension control Automatic control of tension Meter Electronic meter, automatic fixed-length roll cut off Control method PLC Siemens
